When fire strikes a building, you have mere minutes before escape routes become death traps and structural collapse threatens everyone inside.
Here’s what most people don’t realize: the difference between life and death often comes down to invisible safety systems built right into the walls, floors, and ceilings around you. Passive fire protection (PFP) is the silent guardian that works 24/7 without electricity, without activation, and without fail, creating protective barriers that contain fire at its source and maintain safe escape routes when seconds count.
In the comprehensive guide below, we’ll break down exactly how these life-saving systems function, where they’re installed, and why building codes demand their presence in every modern structure.
Key Takeaways
- PFP works 24/7 without electricity or activation – built into building structure
- Active systems require triggering; passive systems are always working
- Most effective fire safety combines both active and passive protection
What is the difference between active and passive fire protection?
The main difference is that:
- active fire protection systems require an action to work, while
- passive fire protection systems do not.
Active systems are designed to detect a fire and then take direct action to suppress or extinguish it.
Unlike active fire systems that can malfunction or require triggering, PFP systems are embedded directly into a building’s DNA. They automatically compartmentalize structures, prevent fire and smoke from spreading between areas, and keep critical escape routes stable and accessible.
This means when disaster strikes, you’re not depending on sprinklers that might fail or alarms that might not sound, you’re protected by engineering that never sleeps, never needs maintenance calls, and never depends on human reaction time.
Common examples of active systems include:
- Fire sprinkler systems that release water when they detect heat.
Smoke alarms that sound a warning.
- Fire extinguishers for manual use.
- Fire suppression systems for commercial kitchens.
In contrast, PFP is integrated into the very fabric of the building. Fire-rated walls, doors, and floors are always in place, ready to resist fire without any activation. The most effective fire safety strategies use both active and passive fire protection together. Passive systems contain the fire, while active systems work to put it out.
How does passive fire protection work?
Passive fire protection works primarily through:
- containment, and
- compartmentation
The strategy involves dividing a building into a series of fire-rated compartments, using fire-resistant walls, floors, and ceilings to create barriers against the spread of flames and smoke.
This compartmentation is a core principle of PFP. By isolating a fire within a single compartment, the system can slow its growth significantly. This protects escape routes and prevents the building’s structure from collapsing, giving occupants more time to evacuate safely.
Another key function is structural fire protection, which involves applying fire-resistant materials to essential steel beams and columns.
This prevents them from weakening under intense heat, preserving the building’s integrity during a fire. These systems are constantly working in the background and require no manual activation to function effectively.
Examples of passive fire protection (PFP) systems
Common examples of passive fire protection systems are designed to work together to form a complete barrier against fire. These include:
- Fire-rated doors, walls, and floors
- Fire and smoke dampers in ductwork
- Firestop materials used to seal openings and joints
- Intumescent coatings for structural protection
The purpose of these systems is to create a series of fire-resistant compartments. This approach, validated by the National Fire Protection Association (NFPA), ensures that if a fire starts in one area, it remains contained for a specified period. Proper installation and regular inspections are essential to ensure these systems function as intended during an emergency.

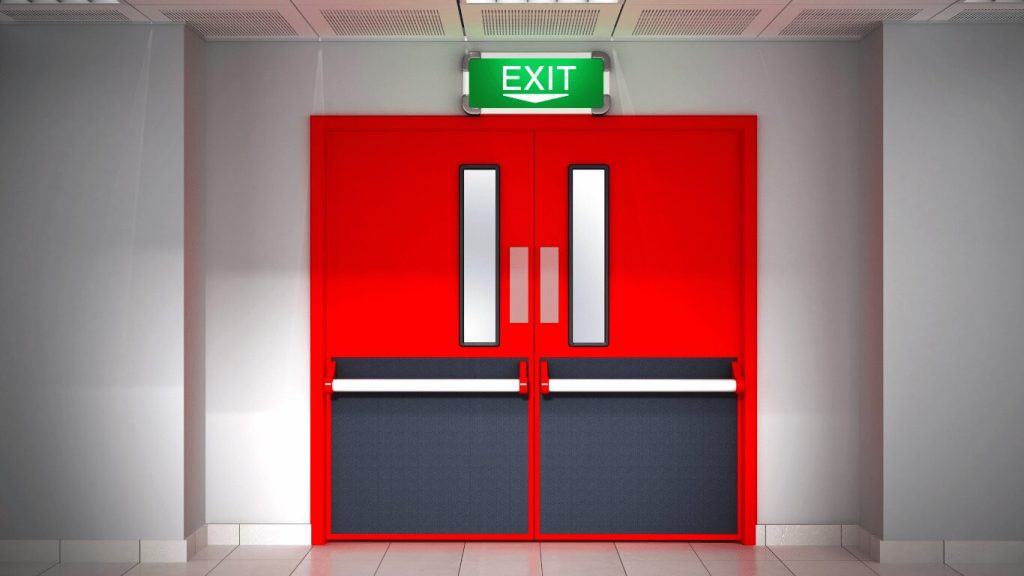

1. Fire doors
A fire door is an engineered door assembly constructed to slow or completely stop the spread of smoke and fire between compartments. These doors are a critical part of a building’s passive fire protection strategy, designed to maintain the integrity of a fire-rated wall when closed.
A fire door’s effectiveness depends on the entire tested assembly, which includes:
- The door itself
- The frame
- Hardware (e.g., hinges and latches)
- The closing mechanism
Each component is tested to withstand fire for a specific time rating (20/45/60/90/180 minutes). For them to work, they must be closed and latched during a fire event, which is why many are equipped with automatic closing devices. Regular annual inspections are mandatory to ensure they are functioning correctly.
2. Fire and smoke dampers
Fire and smoke dampers are devices installed within a building’s HVAC ductwork where it penetrates fire-rated walls, floors, or ceilings. Their purpose is to close automatically upon the detection of heat or smoke, sealing the opening to prevent flames and smoke from traveling through the ventilation system.
- A fire damper typically has a fusible link that melts at a specific temperature, causing the damper to shut.
- A smoke damper is activated by smoke detectors to stop the spread of toxic smoke.
Many modern systems use combination fire/smoke dampers. Regulatory codes like NFPA 80, 90A, and 105 provide strict requirements for their installation and maintenance to ensure they provide reliable protection.
3. Firewalls and fire barriers
Firewalls and fire barriers are fire-rated wall assemblies that form the backbone of compartmentation in passive fire protection. A firewall is a robust, self-supporting wall designed to prevent fire spread between or through buildings, while a fire barrier subdivides a single building into smaller fire compartments.
These structures are built from non-combustible materials and are tested to achieve a specific hourly fire-resistance rating. This rating indicates how long the wall can withstand fire while maintaining its structural function. Penetrations for pipes, wires, or ducts must be protected with appropriate firestop systems to ensure the barrier remains intact.
4. Firestop materials
Firestop materials are a group of products used to seal openings and joints in fire-rated walls and floors. These penetrations, made for pipes, cables, or ducts, would otherwise create a pathway for fire and smoke.
Firestop products expand when heated to close off these gaps and include materials such as:
- Caulks and sealants
- Putties
- Collars and wrap strips
5. Intumescent coatings
Intumescent coatings are another vital PFP material, often applied to structural steel. When exposed to high heat, these special paints swell up to many times their original thickness, forming an insulating char layer. This layer slows the heating of the steel, preserving its strength and preventing a premature structural collapse.
Ready to Explore Your Options?
These built-in systems, from fire doors to intumescent coatings, work silently to contain fires and provide crucial time for evacuation. They are the foundation upon which active systems like sprinklers and alarms build for a complete, balanced approach to fire safety.
If you need to ensure your building’s PFP and active systems are up to code and fully functional, a professional assessment is essential.
Contact us at B&W Fire Security Systems today to discuss your fire protection services and learn how we can help you create a safer environment.
Passive Fire Protection (PFP) FAQs
What is the main goal of passive fire protection (PFP)?
The main goal of PFP is to contain a fire to its point of origin. By compartmentalizing a building and protecting its structural elements, these systems buy valuable time for occupants to evacuate safely and for firefighters to respond.
What is the difference between active and passive fire protection?
Active fire protection systems need to be triggered to work, like a fire sprinkler system releasing water. In contrast, passive fire protection is built into the structure and is always working to contain a fire without any activation. The most effective strategies use both active and passive fire protection together.
How does PFP contain a fire?
PFP works through compartmentation—dividing a building into a series of fire-resistant compartments using fire-rated walls, floors, and ceilings. This strategy isolates a fire, slows its growth, and protects escape routes.
What are some common examples of PFP systems?
Common PFP systems include fire-rated doors, walls, and floors; fire and smoke dampers in ductwork; firestop materials used to seal openings; and intumescent coatings that protect structural steel from heat.
What is a fire door?
A fire door is an engineered assembly designed to slow or stop the spread of fire and smoke. For it to be effective, the entire assembly—including the door, frame, hardware, and closing mechanism—must be installed correctly and remain closed during a fire. Regular inspections are crucial to ensure they function properly.
What do firestop materials and intumescent coatings do?
Firestop materials are products like caulks and putties used to seal openings in fire-rated walls and floors, preventing fire from passing through. Intumescent coatings are special paints that swell when heated, forming an insulating char layer that protects structural steel from weakening.
